MAHLE ArcticPRO R134a Refrigerant Handling System

The new ArcticPRO R134a Refrigerant Handling System is a high performance unit that is capable of running virtually unattended allowing your technicians the extra time to perform other tasks. Our new design offers a uniquely designed ergonomic service door, built-in status indicator light, and an intuitive, state of the art user interface that provides the optimal environment for fully automatic A/C service and simple unit maintenance. This comes to you with an integrated 7″ capacitive touchscreen making this unit even easier to use than previous models and a UV dye injection feature provides high-level A/C system leak detection. The optional refrigerant identifier ensures that the proper refrigerant is being serviced and prevents contamination of the unit and your customer’s air conditioning system. For a streamlined shop, and safe and precise A/C refrigerant handling, rely on ArcticPRO.

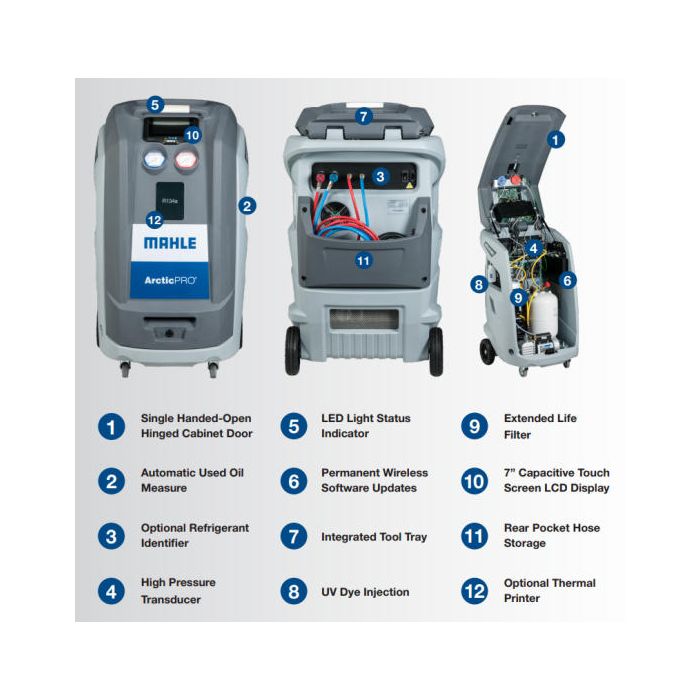

Features

• State-of-the-Art. Ergonomic design, 7″ capacitive touch screen and intuitive user interface sets a new industry standard.

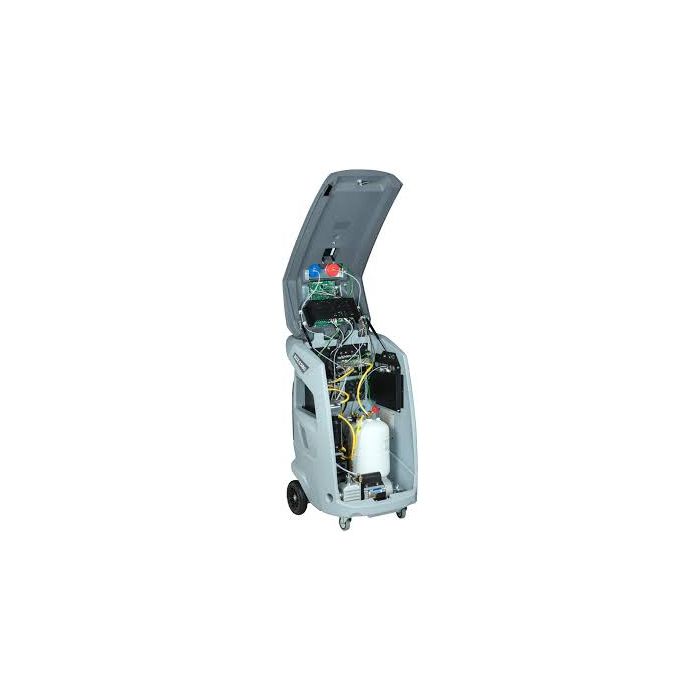

• Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
• Status Indicator. LED light indicates status visible from anywhere in the workshop.
• Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
• Oil System Management. Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service.
• UV Dye Injection. Integrated UV dye injection provides high level of A/C system leak detection.
• Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
• Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• Network Printing. Retains valuable service records, network printing capability to print services provided for customer.

Specifications

• Certifications: SAE J2788, SAE J2099, UL 1963
• Charge Performance: +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
• Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation: Fully Automatic
• Charging Cylinder: 30 lb. (13.6 kg) DOT
• Compressor: 3/8 HP-0.279kW
• Display: Color, 7″ Capacitive Touch Screen
• Filter Drier Capacity: 150 lb. (68 kg) spin-on type
• Hoses: 9 ft. (2.75 m)
• Languages: English, French, Spanish
• Operating Ranges: 50 degrees – 122 degrees F (10° to 50°C)
• Power Source: 120 VAC – 60 HZ – 12 AMP
• Vacuum Pump: 2 CFM dual stage
• Printer: Optional
• Dimensions: (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
• Weight: 215 lb. (98 kg)
• Warranty: 1 Year Labor, 2 Years Parts
