AMGO SPL-6 Single Post Parking Lift with 110V 1HP Motor

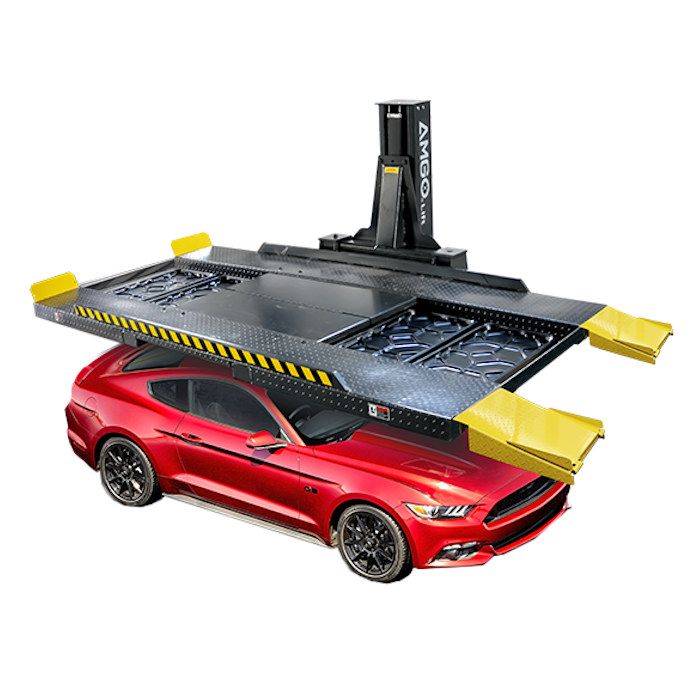

AMGO’s SPL-6 Single Post Parking Lift is our newest single post parking lift. This lift combines AMGO high quality with space saving design and easy operation. This single post parking lift has a non-slip lifting platform, manual safety lock release, and h-shaped lifting platform with reinforced column. It includes reversible drive in ramps and wheel stops which allow the vehicle to be driven in from either side. The SPL-6 is a great fit for commercial shops and it’s low post height for low ceilings makes it perfect for home garages. It also comes with the AMGO 5/3/2 Warranty.

Features

• 6,000 lbs. Lifting Capacity
• Manual Safety Lock Release
• Non Slip Lifting Platform
• H-Shaped Lifting Platform with Reinforced Column
• Minimum concrete requirement – 6” at 3000 psi.
• Low Post Height for Low Ceilings
• Suitable for Home Garages and Commercial Applications
• Reversible Drive Ramps and Wheel Stops (drive in from either side)
• ETL Certified Power Unit
• Available in 110V (SPL-6 071103) or 220V (SPL-6 071104)

Optional Parts

• #40803 (2) Aluminum Alloy Drive-In Ramps Available

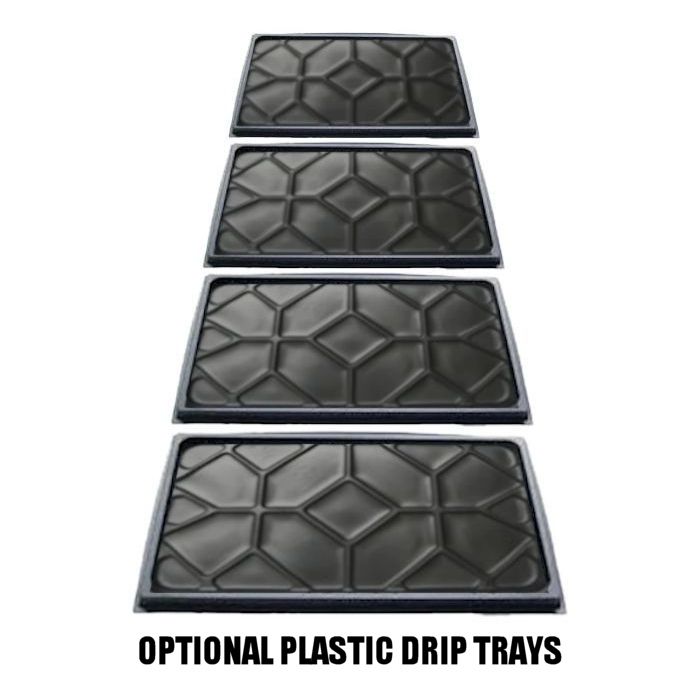

• #40807 (4) Drip Trays Available

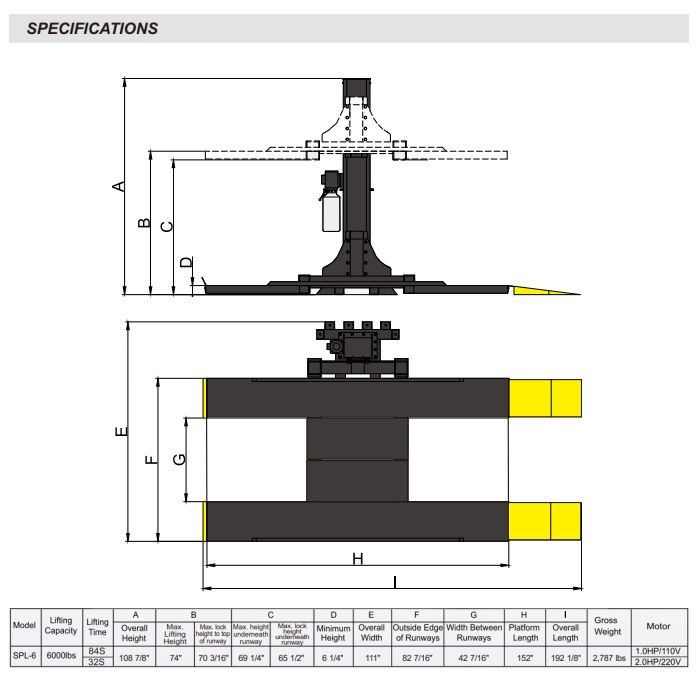

Specifications

• Lifting Capacity: 6,000 lbs.
• Lifting Time 110V: 84s
• Lifting Time 220V: 32s
• A: Overall Height: 108 7/8″ (2766mm)
• B: Max. Lifting Height: 74″ (1880mm)
• C: Max. Underneath Height: 69 1/4″ (1760mm)
• D: Minimum Height: 6 3/8″ (160mm)
• E: Overall Width: 111″ (2820mm)
• F: Outside Edge of Runways: 82 3/8″ (2093mm)
• G: Width Between Runways: 42 3/8″ (1077mm)
• H: Platform Length: 152″ (3860mm)
• I: Overall Length: 192 1/8″ (4880mm)
• Motor: 1HP 110V or 2HP 220V
• Gross Weight: 2,725 lbs. (1235kg)
• Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor
